WMS 34/1000

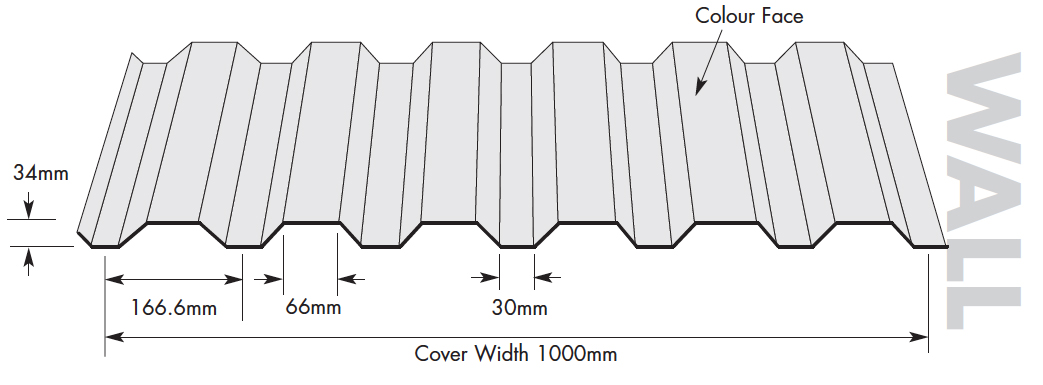

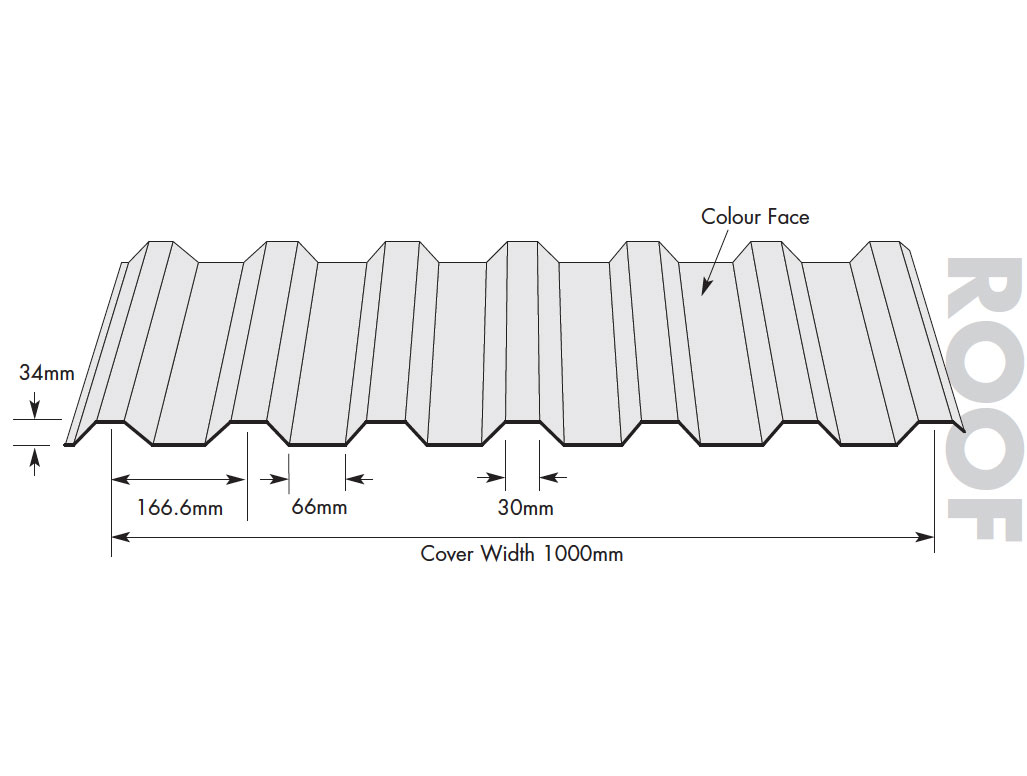

Please click on the “Type” to see the Roof and Wall versions
Or the “Download” for a version to print.

Description

The WMS 34/1000 profile is an economic box profile sheet, with a 167mm profile pitch and 2mm deeper than the traditional ribbed 32mm profile, the profile has improved structural strength. It can be supplied in steel 0.5mm and 0.7mm gauge and aluminium 0.9mm gauge.

Full range of finishes available Leathergrain plastisol, Polyester, plain galvanised or plain Aluzinc for the steel and Polyester Powder and plain mill finish for the aluminium.

This profile can be supplied with an anti-condensation reverse coating.

Profile can be supplied crimp curved for ridges and eaves details.
